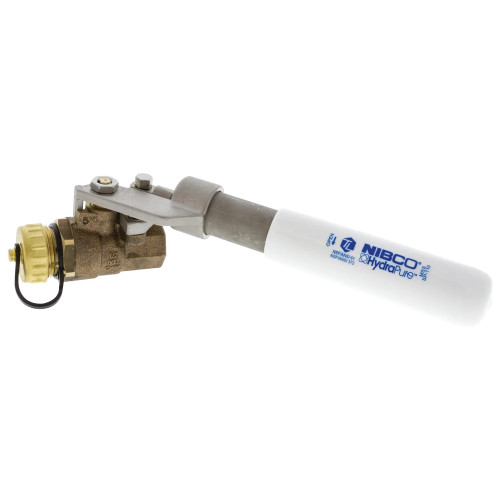

T58566LFSR 1/4 in. Two-Piece Bronze Ball Valve - Lead Free - Full Port, Stainless Steel Trim, Threaded, Spring Return Handle
Description:
The NIBCO® spring return handle ball valve allows for manual opening as required, but automatically defaults to the closed position. The valve can be installed in applications such as sampling, draining, or refueling operations. The handle is robustly constructed of stainless steel material.
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve is made of lead-free* Silicon Performance Bronze™ alloy and has achieved the stringent NSF/ANSI 61 section 8 (Commercial Hot) and NSF/ANSI 372 listings.The ball valve features reinforced PTFE seat rings with stainless steel stem and ball, and threaded ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, residential, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
- Spring Return Handle
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Maximum temperature rating 300°F
- Full port
- Blowout-proof stem
- Silicon Performance Bronze® body
- Stainless steel ball and stem
- Vented ball
- Threaded end connections
- Dezincification resistant
- Lead-free
- Conforms to MSS SP-110/145
- NSF/ANSI/CAN-61
- NSF/ANSI/CAN-372
- IAPMO/ANSI Z1157
Additional Resources
Specification:
- Brand:
- Nibco
- Collection:
- T58566LFSR
- CA Proposition 65 Chemical(s):
- Lead
- CA Proposition 65 Type Of Toxicity:
- Cancer and Reproductive Harm
- CA Proposition 65 Warning Required:
- Yes
- CA Proposition 65 Warning Statement:
- WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Family Name:
- T58566LFSR
- Family Description:
- Two-Piece Bronze Ball Valve - Lead Free - Full Port, Stainless Steel Trim, Threaded, Spring Return Handle
- All Basic Material:
- Lead-Free Bronze
- All Type Of Item:
- Valve
- Size Dimensions:
- 1/4 in.
- Valve Gate Stem Design:
- Blowout-Proof
- Valve Pressure Rating (CWP):
- 600 psi
- Valve Ball Port Style:
- Full Port
- Valve Ball Material:
- Stainless Steel
