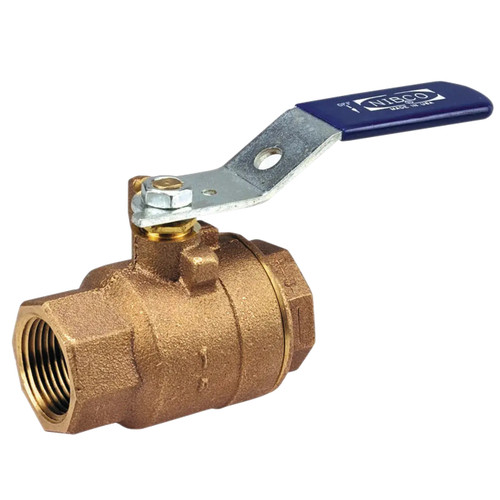

T-585-70-SSHN 1/2 in. Two-Piece Bronze Ball Valve - Full Port, Threaded, Stainless Steel Handle and Nut
Description:
The NIBCO® bronze ball valve provides bubble-tight shutoff at 600 PSI. With the reinforced PTFE seat ring and brass hard chrome plated ball, the valve exhibits high chemical resistance properties. The two-piece valve is recommended for many high pressure applications, HVAC, hot and cold domestic water, Irrigation Water Shutoff, low pressure steam, compressed air, LP gas and natural gas.
The NIBCO® T-585-70-SSHN bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close, with Stainless Steel Handle and Handle Nut for added corrosion resistance. The two-piece valve features thread ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Full port
- Chrome plated brass ball, silicon bronze stem
- Blowout-proof stem
- Stainless steel lever handle and handle nut
- Threaded end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
Additional Resources
Specification:
- Brand:
- Nibco
- Collection:
- T-585-70-SSHN
- Family Name:
- T-585-70-SSHN
- Family Description:
- Two-Piece Bronze Ball Valve - Full Port, Threaded, Stainless Steel Handle and Nut
- All Basic Material:
- Bronze
- All Type Of Item:
- Valve
- Size Dimensions:
- 1/2 in.
- Valve Gate Stem Design:
- Blowout-Proof
- Valve Pressure Rating (CWP):
- 600 psi
- Valve Ball Port Style:
- Full Port
- Valve Ball Material:
- Chrome Plated Brass
